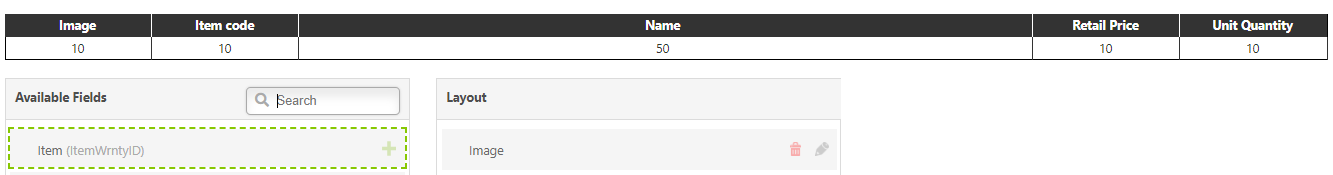

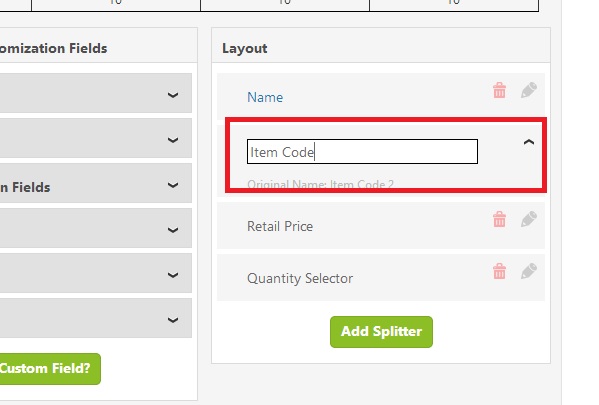

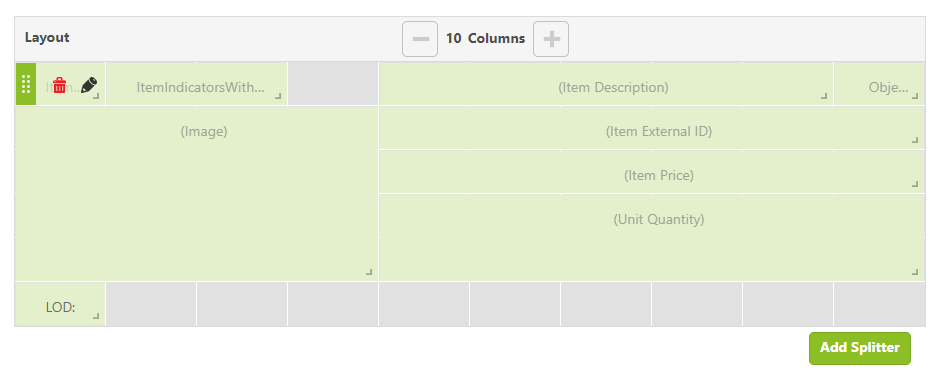

You may configure each of the views available in the Order Center. Configure the fields that will appear in each view and the layout and headings of the fields.
To configure which fields appear in the various Order Center views go to Settings -> Sales Activities -> Transaction Types
Edit the Transaction Type you wish to configure.

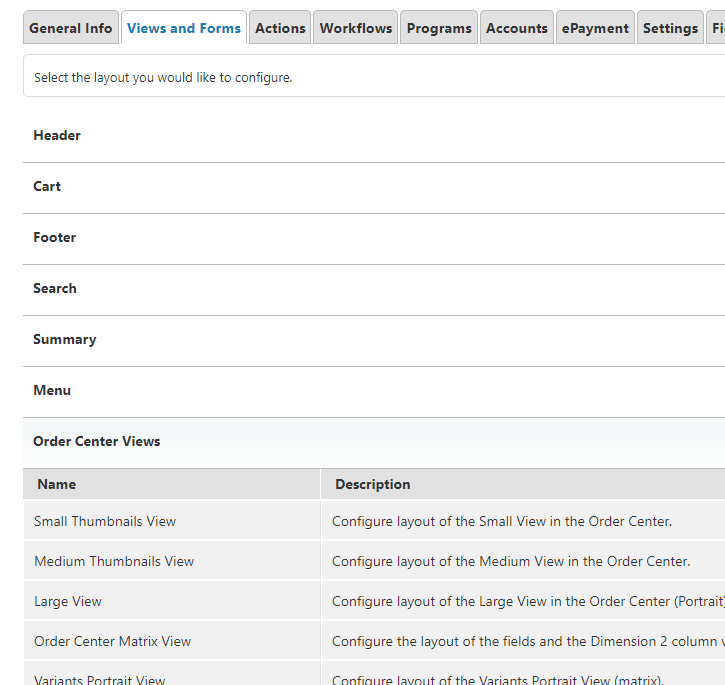

In the Views and Forms tab open the Order Center Views section.

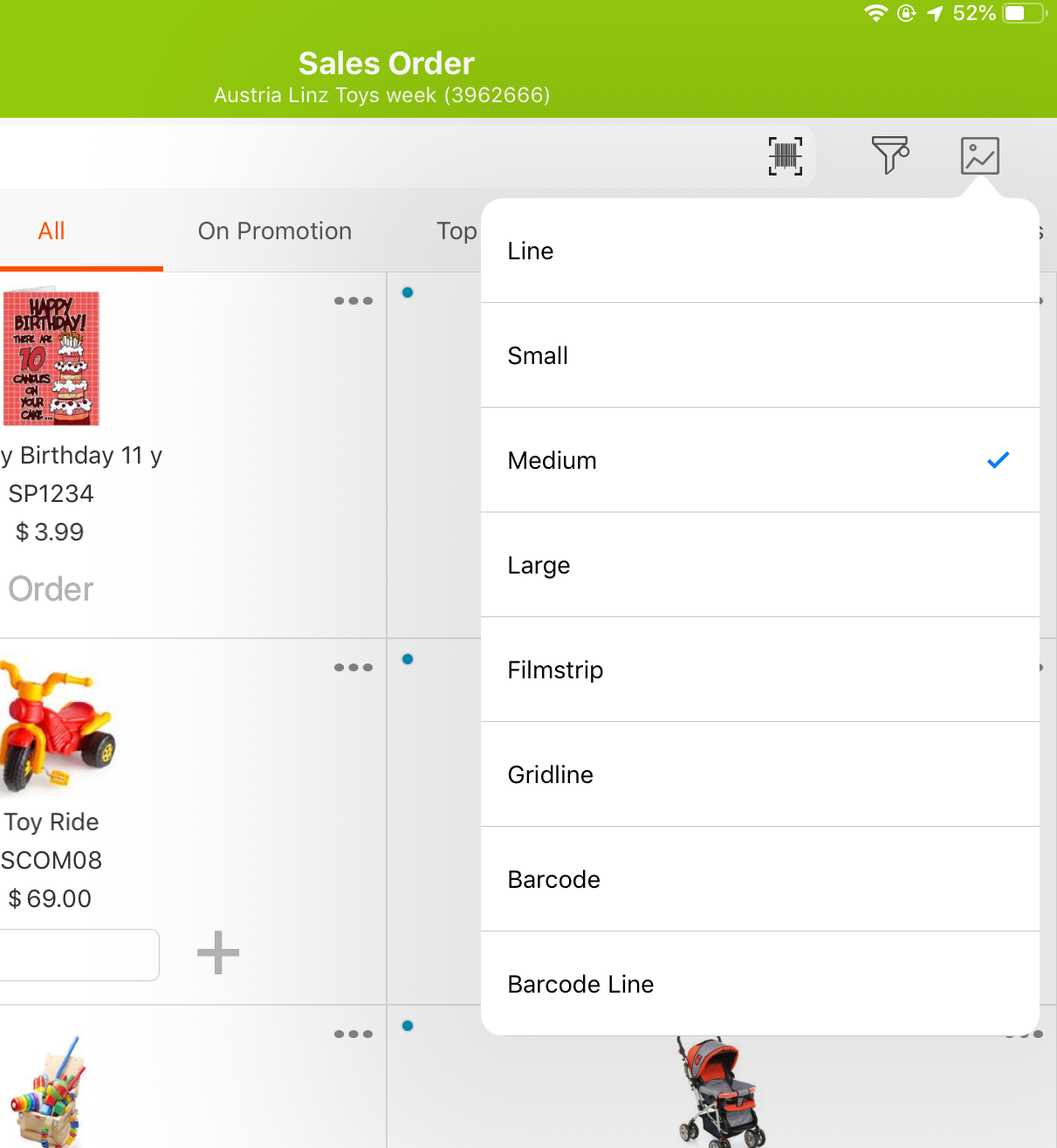

Once you configure a view, you need to add it to the Order Center Views Menu to make it available to users.
You won't see the Matrix and Variant views listed if you have not loaded matrix items with color/size variants.
| View | Description of View |
| Small / Medium | Thumbnail images with item information |
| Large | A full page view. This view can be configured as a Filmstrip view - by adding Item Filmstrip Images in this view. |
| Matrix View | Columns in the matrix view *matrix items only |
| Variants Portrait View | Full page showing the variant enlarged on top and a filmstrip of variant images below *matrix items only |
| Lines View | Configure the lines view presented in smaller screens (phones) |
| Variant Card | The cards in the filmstrip area of the Variant Portrait view *matrix only |
| Additional fields for matrix view | The fields available to display about each variant in the matrix view (ie inventory, last ordered amount, any custom fields, etc.. displayed for each variant of a style) *matrix only |
| Flat Matrix Grid View | Grid view of all variants of a style *matrix only |
| Flat Matrix Lines View | Lines view for smaller devices (phones) *matrix only |
| Grid Line View | Grid with columns |
| Distributed Grid View | Grid displayed when splitting orders (for chain stores only) |
| Item Information Page Portrait | Full page display of item information (in the Web Storefront, this is the page where ordering for matrix items is done) |
| Item Information Page Footer | The footer of the Item Info page, may be left empty, may contain a quantity selector or any other field. |
| Barcode Grid View | Grid with columns when entering barcode scanning mode (when using bluetooth paired scanners) |
| Barcode Line View | Line view for smaller devices when entering barcode scanning mode. |

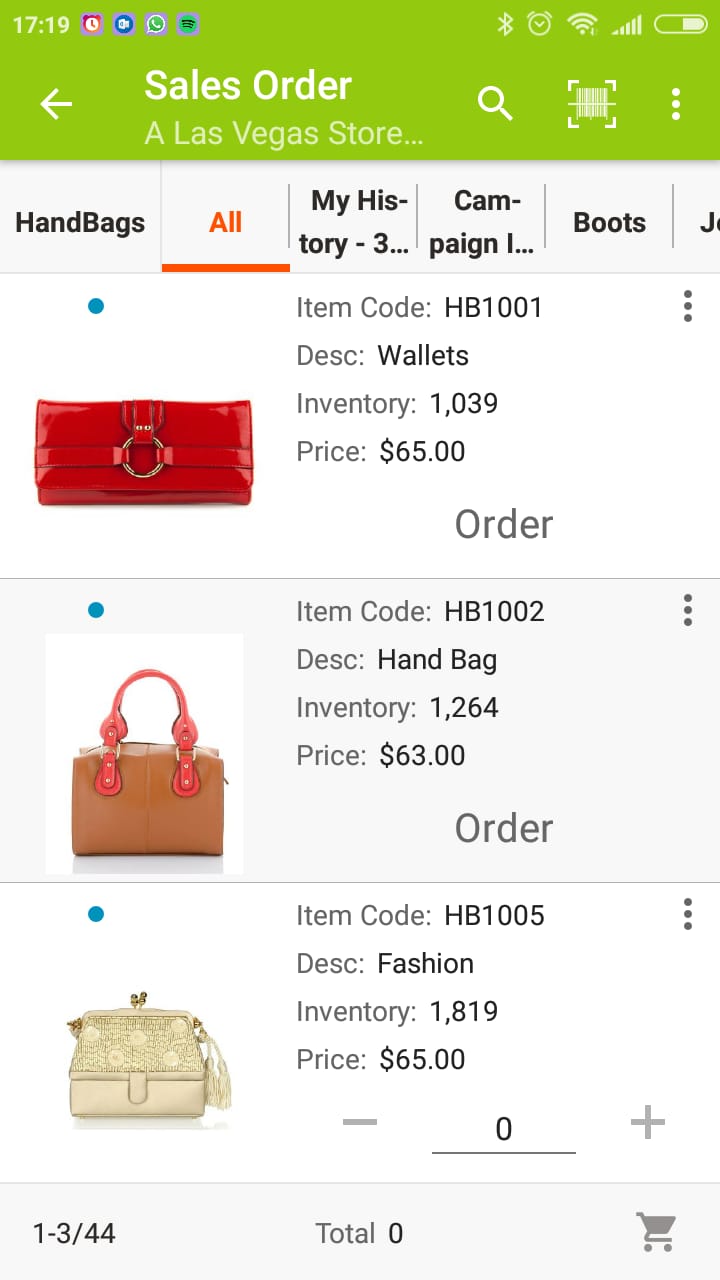

Lines view allows you to configure views for phone screens. The fields are positioned in wide and tall lines for easy viewing on a narrow device.
Additional Fields for Matrix View
Configure this view to display properties of each variant inside the cells in the matrix view.
Add as many fields as you like to the layout. They will be displayed in a menu, and when selected in the matrix box (example above shows inventory).
For example if you need to display inventory, price, or field such as "no longer available" or a fabric type "leather" or any other field of the color/size variant you can add it to this configuration.

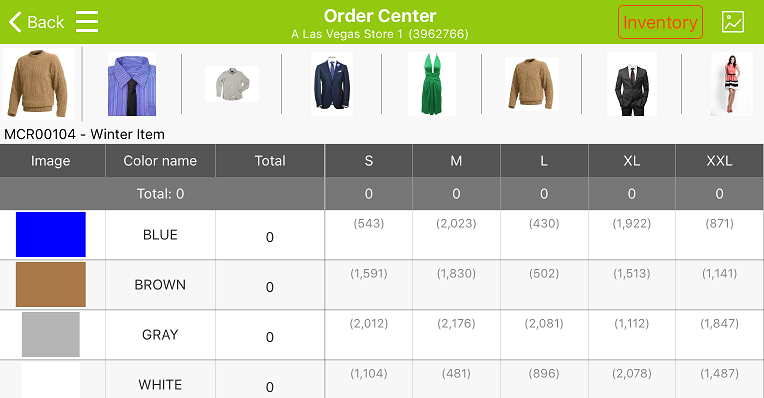

Matrix View
Configure the fields displayed in the Matrix view for each variant as well as indicate a minimum width for the 'size' columns.
For example: add fields like color image, Item name, price, or a custom field to the matrix view:
If you have many sizes for a style, the minimum width setting ensures that the display will look good, allowing scrolling to the right to see all sizes.

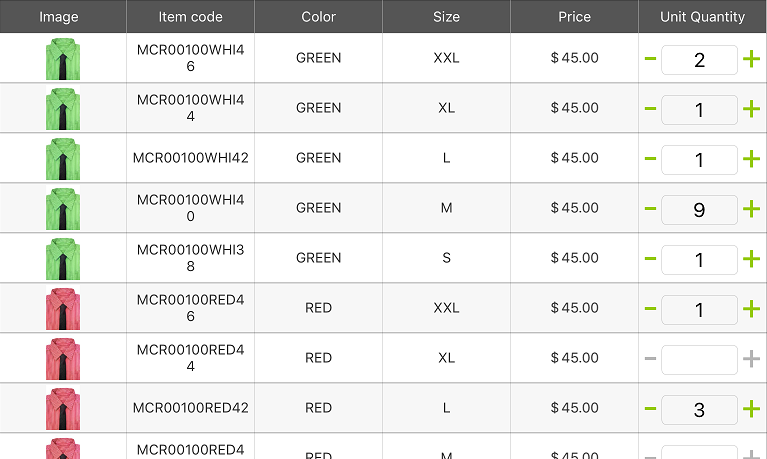

Flat Matrix Grid View
Variant View
Order color variants of an item in one convenient filmstrip view. You may now configure the information that appears for each variant card. The unit quantity ordered for each color appears on the card.
The configuration of the variants view is based on three configurations:
- Variants Portrait View – this is the main view showing the selected variant details.
- Variant Card View – this is the view of the cards seen in the variant main view.
- Variant Cards Special data control - when this control is placed on the Variants Portrait View, it will be filled with the variants cards.
